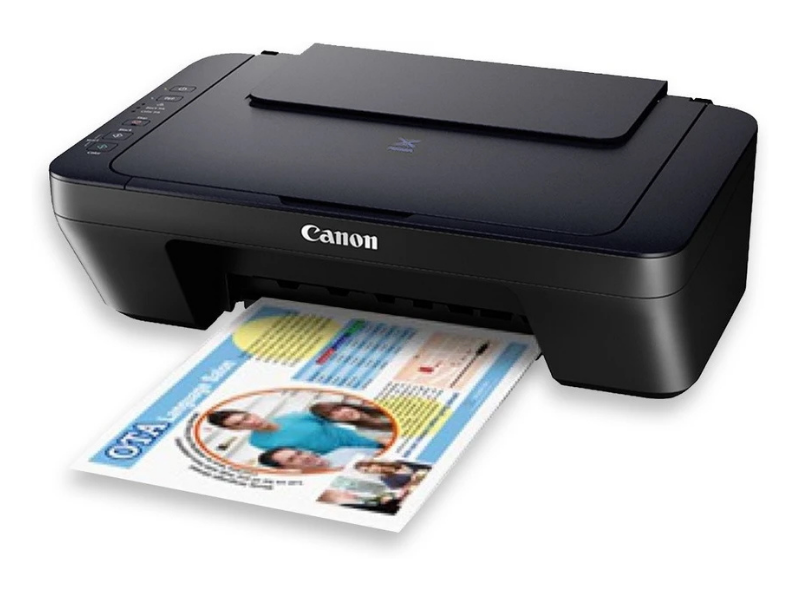

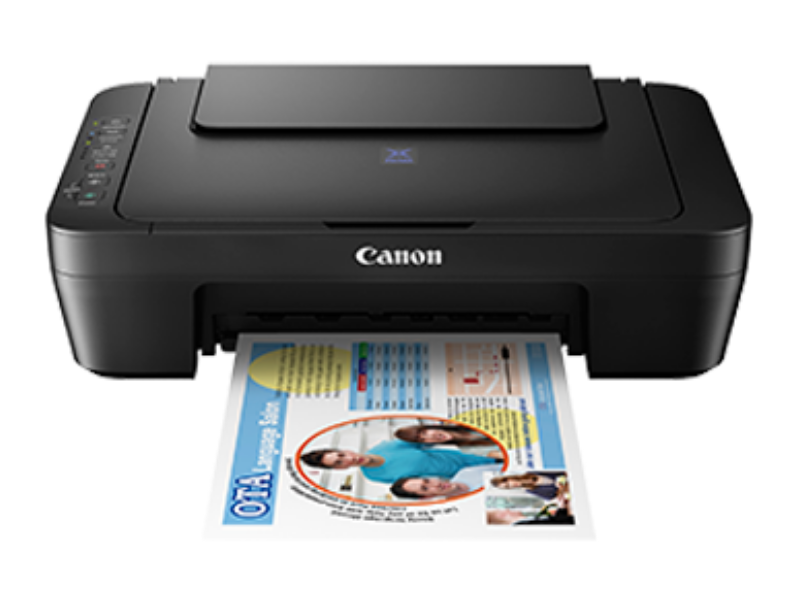

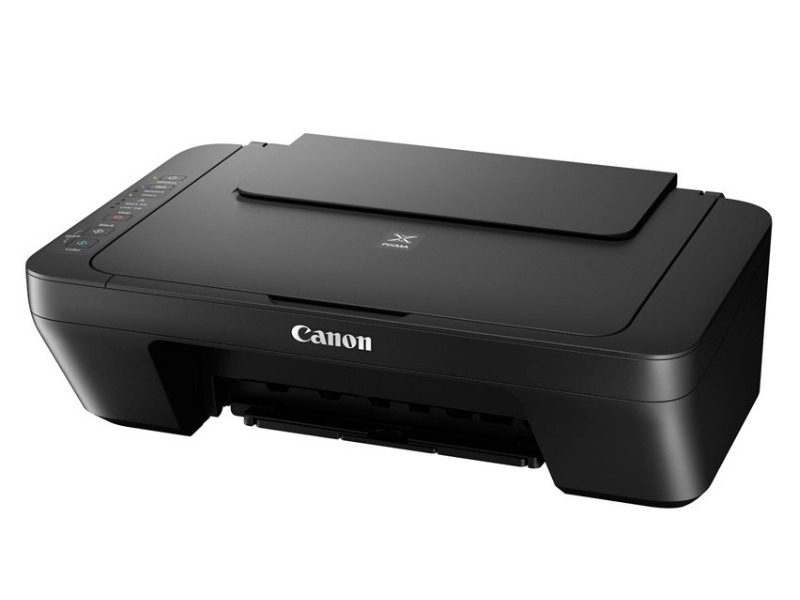

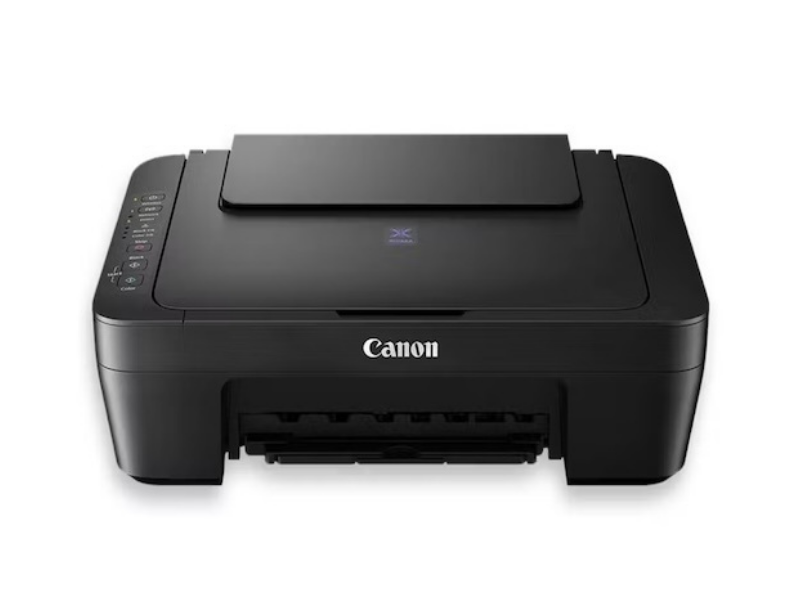

CANON PIXMA E470 Printer
|
| Model
|
E470
|
| Type
|
Fine Cartridge
|
| Number of Nozzles
|
Total 1,280 nozzles
|
| Ink Cartridges
|
PG-47, CL-57S (Optional: CL-57)
|
| Maximum Printing Resolution
|
4800 (horizontal) x 1200 (vertical) dpi
|
| Print Speed (ESAT/Simplex)
|
8 ipm (Mono) / 4 ipm (Colour)
|
| Printable Width
|
Up to 203.2 mm (8 inch)
|
| Printable Area (Bordered)
|
Top: 3 mm, Bottom: 16.7 mm, Left/Right: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm)
|
| Recommended Printing Area
|
Top Margin: 31.6 mm, Bottom Margin: 29.2 mm
|
| Paper Size
|
A4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", Envelopes (DL, COM10), Square (5 x 5"), Custom size (width 101.6 - 215.9 mm, length 152.4 - 676 mm)
*F4 is possible via custom size settings.
|
| Rear Tray Capacity (Plain Paper)
|
A4, A5, B5, Letter = 60 sheets; Legal = 10 sheets
|
| Rear Tray Capacity (Photo Paper)
|
4 x 6" = 20 sheets, Square (5 x 5") = 10 sheets, 5 x 7" = 10 sheets
|
| Rear Tray Capacity (Envelopes)
|
European DL / US Com. #10 = 5
|
| Paper Weight (Rear Tray)
|
Plain Paper: 64–105 g/m²; Canon specialty paper: up to 275 g/m² (PP-201)
|
| Ink End Sensor
|
Dot count
|
| Print Head Alignment
|
Manual
|
| Scanner Type
|
Flatbed
|
| Scanner Method
|
CIS (Contact Image Sensor)
|
| Optical Resolution
|
600 x 1200 dpi (TWAIN Driver only)
|
| Selectable Resolution
|
25 - 19200 dpi
|
| Scanning Bit Depth (Grayscale)
|
16 bit / 8 bit
|
| Scanning Bit Depth (Colour)
|
48 bit / 24 bit (RGB each 16 bit / 8 bit)
|
| Line Scanning Speed (Grayscale)
|
1.2 ms/line (300 dpi)
|
| Line Scanning Speed (Colour)
|
3.5 ms/line (300 dpi)
|
| Scanning Speed (A4 Colour / 300 dpi)
|
Approx. 14 sec
|
| Max Document Size (Scan/Copy)
|
A4 / LTR (216 x 297 mm)
|
| Compatible Media Size
|
A4, Letter
|
| Compatible Media Type
|
Plain Paper
|
| Image Quality (Copy)
|
Draft, Standard
|
| Copy Speed (sFCOT/Simplex)
|
Approx. 28 sec
|
| Copy Speed (sESAT/Simplex)
|
Approx. 2.1 ipm
|
| Multiple Copy
|
Mono/Colour: 1–21 pages
|
| Network Protocol
|
TCP/IP
|
| Wireless Network Type
|
IEEE 802.11b/g/n
|
| Wireless Frequency Band
|
2.4 GHz
|
| Wireless Channel
|
1–13
|
| Wireless Range
|
Indoor: up to 50 m (depending on conditions)
|
| Wireless Security
|
WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
|
| Direct Wireless Connection
|
Available
|
| Canon Print Service (Android)
|
Available
|
| Cloud Service (from mobile)
|
Available
|
| Canon PRINT (iOS/Android)
|
Available
|
| System Requirements
|
Windows 10 / 8 / 7 SP1, Vista SP2; Mac OS X 10.8.5 and later
|
| Interface
|
USB 2.0
|
| Operating Temperature
|
5–35°C
|
| Operating Humidity
|
10–90% RH (no condensation)
|
| Recommended Temperature
|
15–30°C
|
| Recommended Humidity
|
10–80% RH (no condensation)
|
| Storage Temperature
|
0–40°C
|
| Storage Humidity
|
5–95% RH (no condensation)
|
| Quiet Mode
|
Available
|
| Acoustic Noise (PC Print)
|
46.5 dB(A)
|
| Power
|
AC 100–240 V, 50/60 Hz
|
| Power Consumption
|
OFF: 0.2 W, Standby: 1.6 W, Copying: 10 W, Printing: 10 W
|
| Dimensions (W × D × H)
|
426 x 306 x 145 mm
|
| Weight
|
Approx. 3.5 kg
|
| Page Yield (A4)
|
PG-47: 400 pages (Black)
CL-57S: 180 pages (Colour)
Optional CL-57: 300 pages (Colour)
|
